X-act 7000
8610800
Log in to see prices

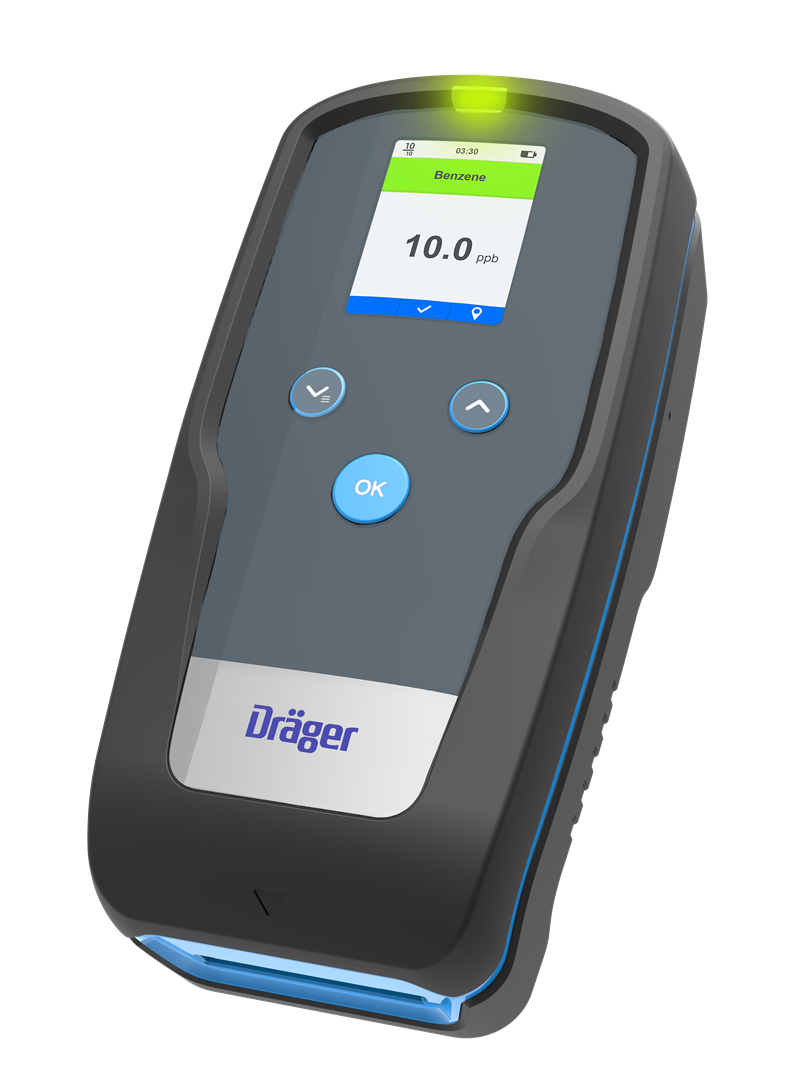

Together with Dräger MicroTubes, the X-act 7000 is a portable analyzer system for measuring instantaneous concentrations of a known gas or vapor down to the lower ppb measuring range. The application is very simple: Insert the Dräger MicroTubes, start the measurement and read the result on the color display. Each MicroTubes can perform 10 consecutive measurements. The analyzed concentration of the hazardous substance is shown on a display. All important measurement information such as measured substance, measurement result, date, time and location are stored in the integrated data memory either automatically or manually. This data can be called up at a later time and evaluated via the Dräger CC-Vision software. Approval: BVS Europe EEx ib II CT4 Protection class: Dust- and splash-proof according to IP 64 Dräger X-act 7000 meets the requirements of electromagnetic compatibility according to EN 50270 Scope of delivery: Dräger X-act 7000, Dräger MicroTubes Demo, carrying strap, Torx screwdriver T10, 5 Ex approved batteries AA, Mini USB and instructions for use.
| Application: | Active Search / Leakage search, Confined Space Entry, Emergency Response, Exposure Monitoring |
|---|---|
| Approvals: | ATEX, IECEx |
| Comfort Option: | Automatic Test Station, Bumptest Station (mechanical), Colour Display, Measurement assitant modes |
| Detection Type: | Handling of Volatine Organic Compounds (VOCs), Toxic gases/vapours |
| Detector Type: | Multigas Detector, Selective VOC Detector, Single/Dual Gas Detector |
| Gas: | CO (10 - 1000 ppm), H2S (0 - 50 ppm) |
| Industry: | Chemical Industry, Fire Service / First Responder, Food & Bevarage Industry, Manufacturing/Construction, Oil&Gas / Offshore, Other Industry, Pharmaceutical Industry, Power Generation Industry, Security / Defence / Law enforcement, Shipping/Ship Building, Steel & Metal Industry, Water Treatment Industry |
| Live Monitoring: | No |
| Logistics: | Basic Instrument (no sensors/no battery), Country/User individual parameters, Factory default parameters |
| Number of gases: | 1, up to 2, up to 3, up to 4, up to 5, up to 6, up to 7 |
| Other Gases: | 1,3 Butadiene (C4H6), Acetone, Ammonia (NH3), Benzene (C6H6), Chlorine (CL2), Chlorinedioxid (CLO2), Ethanol (C2H5OH), Ethylenoxid (EO), Formaldehyde (HCHO), Hydrogen Chloride (HCl), Hydrogen cyanide (HCN), Hydrogen peroxide (H2O2), Mercaptane, Mercury (Hg), Methanol (Mnol), Ozone (O3), Phosgene (COCl2), Phosphine (PH3), Toluene, Volatile Organic Compounds (VOC), Xylene |
| Product Name: | X-act 7000 |
| Sampling: | External Pump, No Pump |
| Sensor Technology: | Microtubes |
| Top Gases: | Carbon Dioxide (CO2) (0 - 5 Vol%), Carbon Monoxid (CO), Hydrogen Sulfide (H2S), Nitrogen Dioxide (NO2), Nitrogen Dioxide (NO2) (Low concentration), Nitrogen monoxide (NO), Sulfur Dioxide (SO2) |
| Upgradeability: | expandable |
