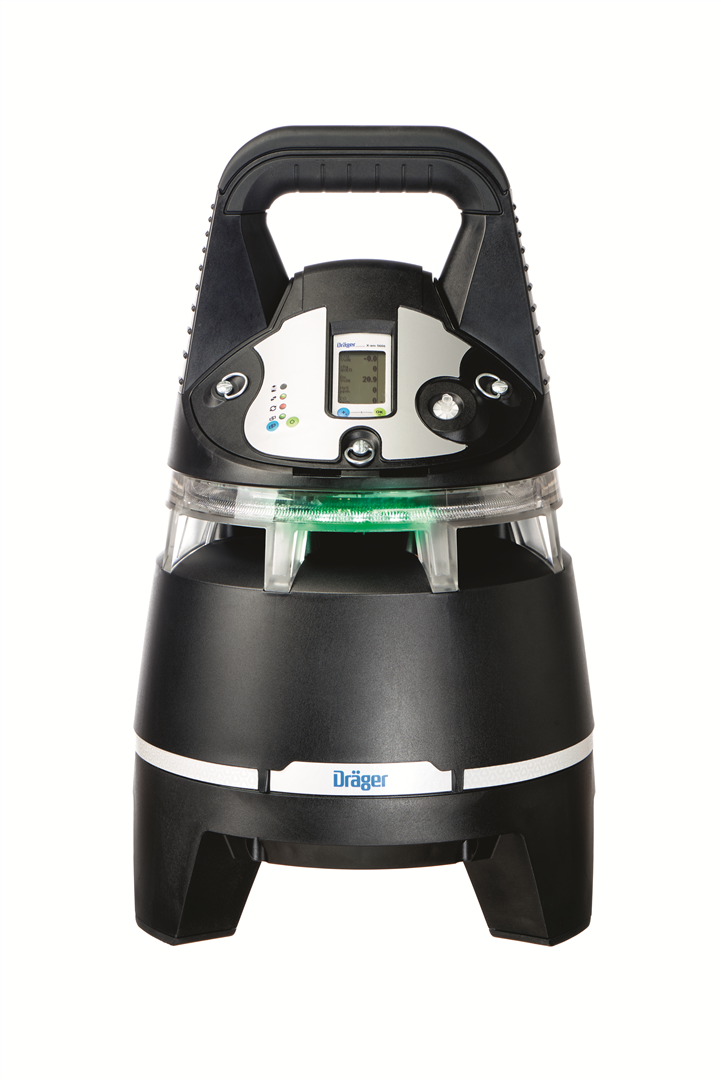

Dräger X-zone 5800 868MHz, 24Ah Pump
8329030
Log in to see prices
Dräger X-zone 5800 for continous moni- toring of large areas in combination with the Dräger X-am 5000, X-am 5100 or X-am 5600 gas detection instruments. - Suitable for the measurement of one up to six gases. - Automatic interconnection of up to 25 Dräger X-zone 5800 to a wireless alarm chain. - Potential-free alarm contact and Modbus data interface for the connection of external equipment. - Integrated pump - Explosion protection approval ATEX Zone 0 - Waterproof IP67 - Battery life up to 120 hours - Continuous operation in explosion-proof area (Zone 0) by supplying power via Power Supply Ex (available end of May 2021) - Rechargeable via plug-in power supply or inductive charger Products for expanding the functionality: GSM module X-zone Com (8324383) GSM module X-zone Com with preinstalled SIM card (8326514) - For forwarding alarms and data via SMS, email or to a cloud
| Application: | Area/Fenceline Monitoring, Confined Space Entry, Hot Work, Inertisation |
|---|---|
| Approvals: | ATEX, IECEx |
| Comfort Option: | Automatic Test Station, Bumptest Station (mechanical), Inductive Charging |
| Detection Type: | Flamable gases/vapours, Toxic gases/vapours |
| Detector Type: | Area Monitor |
| Industry: | Chemical Industry, Manufacturing/Construction, Oil&Gas / Offshore, Other Industry, Pharmaceutical Industry, Power Generation Industry, Steel & Metal Industry |
| Logistics: | Basic Instrument (no sensors/no battery), Country/User individual parameters, Factory default parameters |
| Number of gases: | 1, up to 2, up to 3, up to 4, up to 5, up to 6 |
| Other Gases: | 1,3 Butadiene (C4H6), 1-Chloro-2,3 Epoxypropane (C3H5ClO), Acetaldehyde (C2H4O), Acrylonitrile (C3H3N), Ammonia (NH3), Bromine (Br2), Chlorine (CL2), Chlorinedioxid (CLO2), Diethyl Ether, Diethylamine (DEA), Dimethylamine (DMA), Ethanol (C2H5OH), Ethene (C2H4), Ethine (C2H2), Ethylamine (EA), Ethylenoxid (EO), Fluorine (F2), Formaldehyde (HCHO), Hydrazin (N2H4), Hydrogen Chloride (HCl), Hydrogen Fluoride (HF), Hydrogen cyanide (HCN), Hydrogen peroxide (H2O2), Isobutene (C4H8), Isopropanol, Methanol (Mnol), Methylamine (MA), Methylmethacrylate (MMA), Odorant, Ozone (O3), Phosphine (PH3), Phosphine (PH3) - High concentration, Propene (C3H6), Propylene oxid (PO), Styrene (Styr), Tetrahydrofuran (THF), Tetrahydrothiophene (THT), Triethylamine (TEA), Trimethylamine (TMA), Vinylacetat (Vac), Vinyl chloride (C2H3Cl) |
| Product Name: | X-zone 5800 |
| Sampling: | Internal Pump |
| Top Gases: | Butane (C4H10) (100 %LEL), Butane (C4H10) (100 Vol%), Carbon Dioxide (CO2) (0 - 5 Vol%), Carbon Monoxid (CO), Carbon Monoxid (CO) (High concentration), Carbon Monoxid (CO) - H2 compensated, Ethene (C2H4) (100 Vol%), Hexane (C6H14) (100 %LEL), Hydrogen (H2) (100 %LEL), Hydrogen (H2) (ppm), Hydrogen Sulfide (H2S), Hydrogen Sulfide (H2S) (High concentration), JetFuel (100 %LEL), LPG (100 Vol%), Methane (CH4) (100 %LEL), Methane (CH4) (100 Vol%), Nitrogen Dioxide (NO2), Nitrogen Dioxide (NO2) (Low concentration), Nitrogen monoxide (NO), Nonane (C9H20) (100 %LEL), Oxygen (O2), Pentane (C5H12) (100 %LEL), Propane (C3H8) (100 %LEL), Propane (C3H8) (100 Vol%), Sulfur Dioxide (SO2), Toluene (C7H8) (100 %LEL) |
