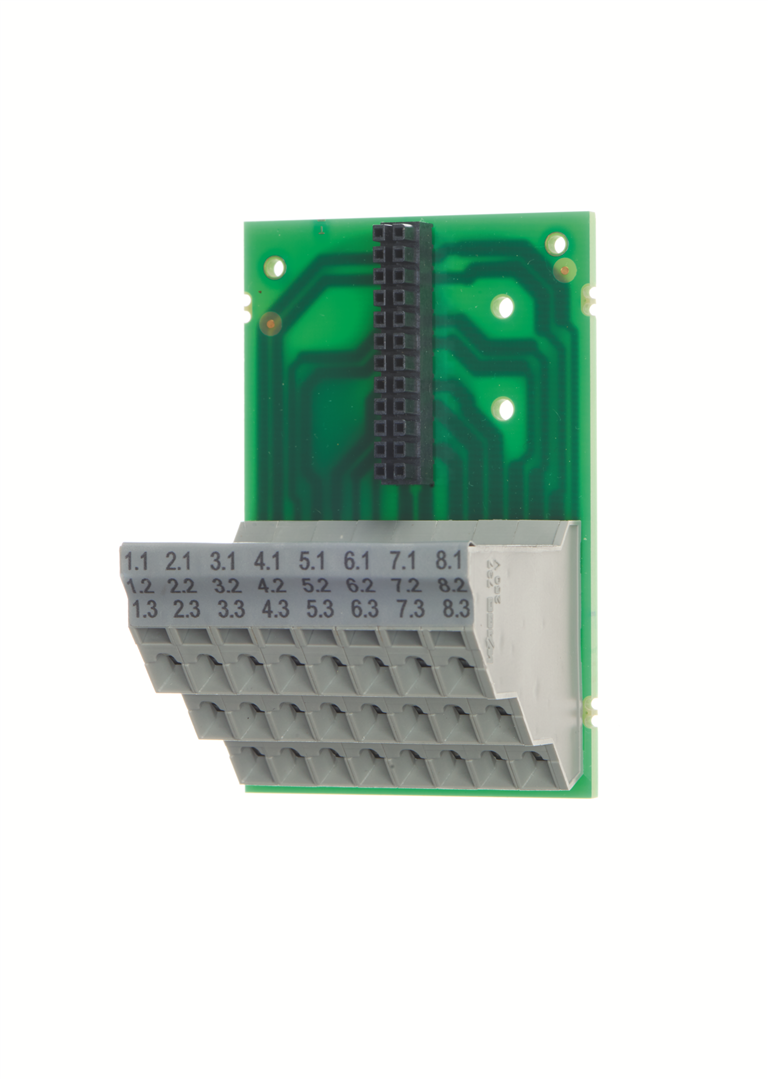

REGARD 7000 terminal block 24 poles DC

8324020

The Terminal Block includes the terminal block of the corresponding module. The gray 24 pole terminal block serves for the connection of analogue 4-20 mA transmitters to the REGARD 7000 4-20 mA Input Module via 2 or 3 wire installation, or the connection of the alarm devices to the REGARD 7000 Relay Module 24 V DC or REGARD 7000 Relay Module 24 V DC complex. In order to prevent the installation of a wrong module the terminal block carries a code plate after the first insertion of the corresponding module. The corresponding module carries a matching code foil which makes the insertion of the module with a non-matching code impossible and thus prevents any damage to the module. 24x plug contacts for wire cross-sections from 0.08 to 2.5 mm2
