REGARD 7000 Docking Station 8-Slot

8322286

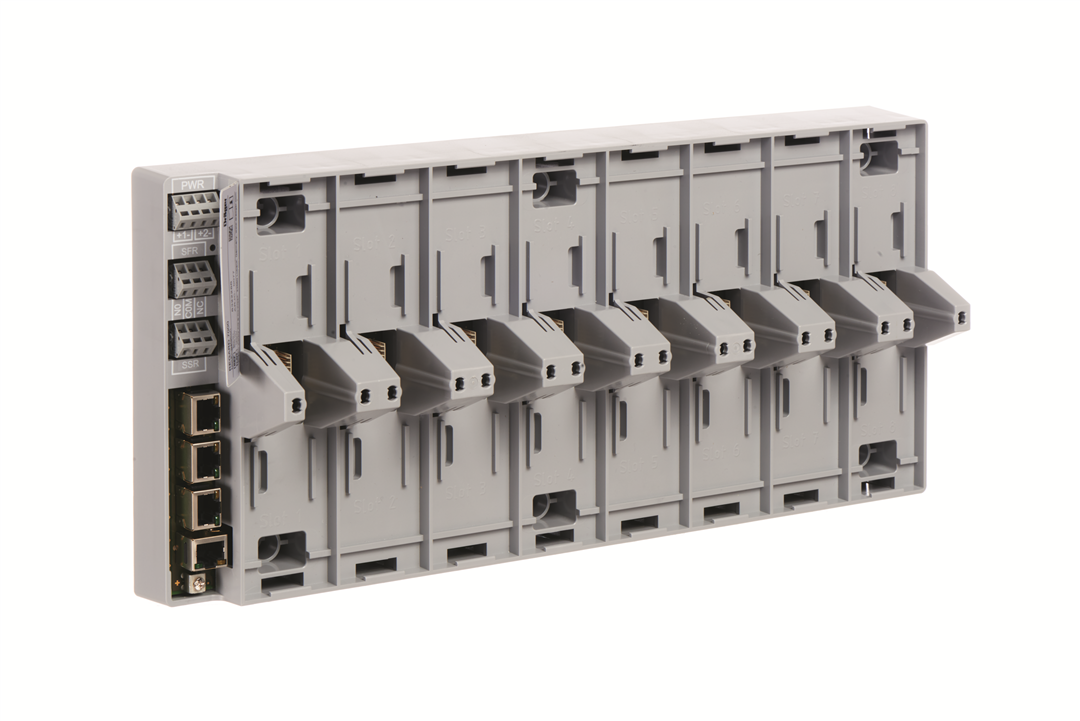

The Dräger REGARD 7000 Docking Station is a carrier board for the modules of the Dräger REGARD 7000 system. A Dräger REGARD 7000 system can contain up to 24 Docking Stations. The Docking Station supplies electricity to all the connected modules and indirectly powers the associated transmitters. The Docking Station contains the terminal blocks of the modules, depending on the system the terminal block can be placed above or below the module. - Capacity for max. 8 random Dräger REGARD 7000 modules in any slots. - 4 LAN ports, 3 of these can be used for connection with other Docking Stations and a Dashboard. - Fourth LAN port e.g. for connecting a Laptop for service works. - Special state relay (SSR) as switch relay in accordance with SIL2. - Fault relay (SFR) as switch relay in accordance with SIL2. - Duplicated 24 V DC input for redundant power supply. - Connection terminals: Plug contacts for wire cross-sections from 0.08 to 2.5 mm2 - Operational voltage: 24 V (18 to 30 V) DC - Power input: max. 22 A (depending on the number of installed modules and connected transmitters) - Power loss: max. 15 W at 24 V - Output SFR und SSR: min. 5 V, 10 mA, max. 30 V, 2 A switching capacity; a fuse is required to protect the SFR and SSR output. - Temperature: (during operation) 0 ... +55 °C - Temperature: (in storage) -40 ... +65 °C - Humidity: 5 ... 95 % r.h., non condensing - Complies with the requirements of the electromagnetic compliance according to EN 50270:2015 (type 2) - Size and weight [H x W x D] [184 x 400 x 78] [mm] [2600] [g]
