X-am 5600 Basic
8321373
Log in to see prices

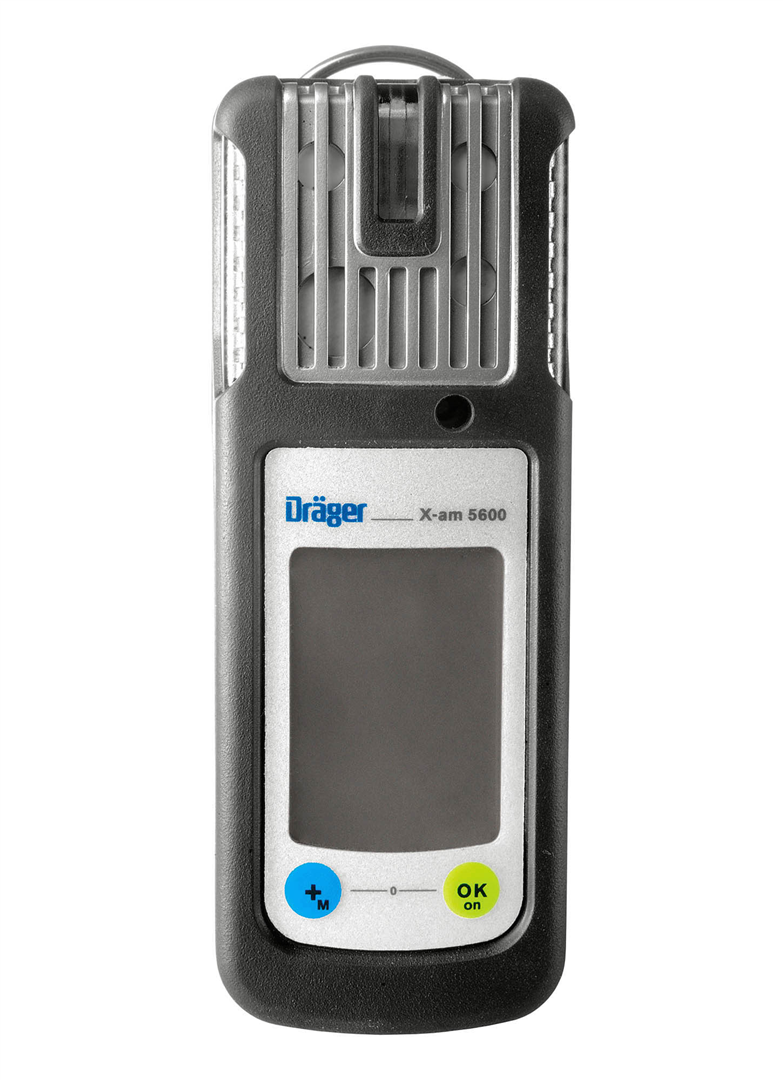

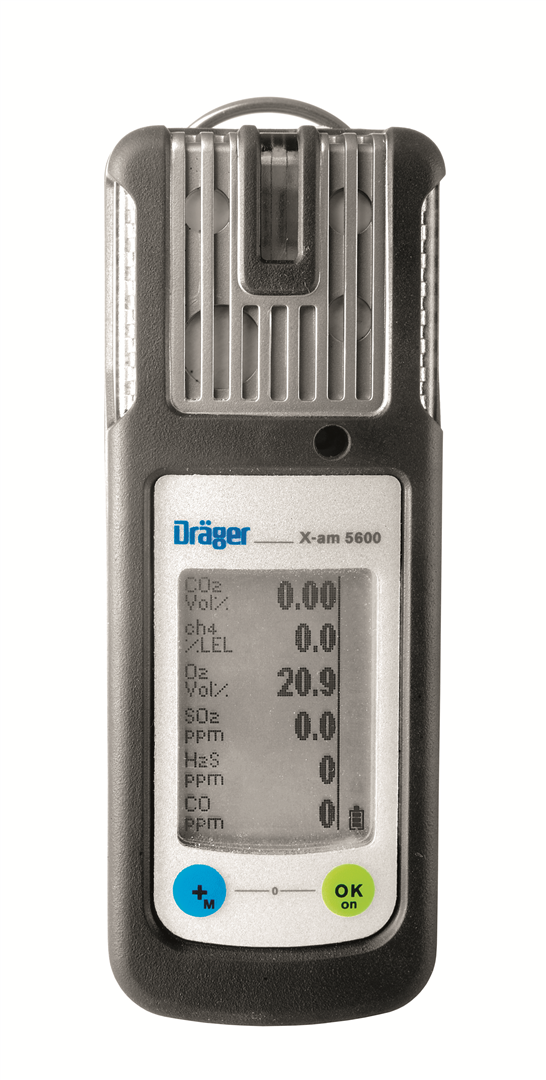

The Dräger X-am 5600 Basic is a small, lightweight gas detection instrument for measuring up to six gases, developed especially for personal monitoring applications. It can be equipped with one infrared or dual IR sensor and aditionally up to three electrochemical sensors. This way it is possible to measure up to six gases at the same time and to monitor the ambient air for explosive gases or vapours, oxygen, and other toxic gases. The Dräger X-am 5600 is by default equipped with an event and a data logger for up to 1000 h. The scope of delivery includes an additional rubber casing protection, a printed instructions for use, and a manufacturer certificate, no sensors, and no power supply. Dräger X-am 5000 Basic (w/o sensors, w/o power supply) event and data logger, manufacturer certificate Optionally, the following attractive accessories are available: - charging accessories - calibration accessories, Dräger Bump Test Station, calibration system Dräger X-dock - communication and evaluation accessories - external pump, hoses, filter and probes - alarm amplifier Dräger X-zone 5000 - bags and cases The DrägerService supports with various services, not only for trainings, calibration, and inspections.
| Application: | Active Search / Leakage search, Confined Space Entry, Emergency Response, Exposure Monitoring, Hot Work, Inertisation, Personal Air Monitoring |
|---|---|
| Approvals: | ATEX, IECEx, MED (Shipping, Europe), Measurement Performance Certificate (Europe), Type Approval (Shiping, international) |
| Comfort Option: | Automatic Test Station, Bumptest Station (mechanical) |
| Detection Type: | Flamable gases/vapours, Oxygen replacement/enrichment, Toxic gases/vapours |
| Detector Type: | Multigas Detector |
| Live Monitoring: | No |
| Logistics: | Basic Instrument (no sensors/no battery), Factory default parameters |
| Number of gases: | 1, up to 2, up to 3, up to 4, up to 5, up to 6 |
| Product Name: | X-am 5600 |
| Sampling: | External Pump, No Pump |
| Sensor Technology: | Electrochemical Sensor, Infrared Sensor |
| Upgradeability: | expandable |
